Carbon Peeling Facial Skin Rejuvenation Desktop Laser Tattoo
Removal Machine q- Switch nd Yag Laser with 1064nm 532nm
Overview
Solution For Pigmented Lesions And Multi-Color Tattoos
This Q Switched Nd:YAG tattoo removal laser makes tattoo removal
more accessible to salons, spas, clinics and practices across
Australia due to its design. This is achieved because our engineers
have revolutionized the tattoo and handpiece design while
maintaining the best possible result.
It emits the light of specific wavelengths in a high peak,
ultra-short nanosecond energy pulse. The light penetrates the
tissue and is absorbed by the pigment and results in an
instantaneous blast. The pigment particles are deconstructed into
small fragments, parts of them will be bounced out of the skin and
the other parts will be split into tiny particles that can be
absorbed by phagocytes and eliminated by the lymphatic system.
Good Looking With Color Touch Screen
532/1064/1320nm Multiple Wavelengths
Multifunctional, Able To Solve All Pigment Problems
Long Life Expectancy And Built-in 13 Languages
Durable, 500,000 Laser Shots

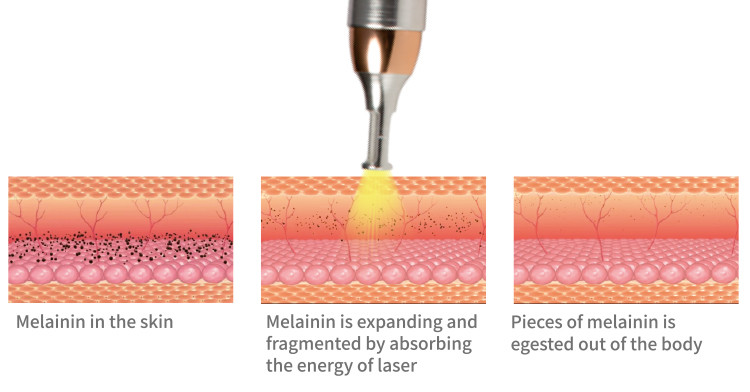

Working Theory
This Nd:Yag laser tattoo removal machine is safe and eftective
removal of tattoosand pigmented lesions, as well as acne scars,
wrinkles and skin revitalizationtreatments. Clinical data shows
better clearance in fewer treatments.The laseremits high energy
light towards the affected area, laser energy is
selectivelyabsorbed by the melanin or tattoo pigment in the skin,
which makes use of theinstantaneous emitted laser to break the
pigment in ill structure. The highabsorption by the melanin
chromophore allows for effective treatment of bothsuperficial and
deep pigmentation using low fluence values, which
significantlyreduces the risk of side effects.
TreatmentsPigmented Lesions and Multi-color Tattoos
Typically this machine will eliminate tattoos in an average of 4 –
10 treatments depending on factors such as the age of the tattoo
and the ink that has been used. It is particularly effective on
black, blue, red and pink but fading will be observed in all colors
to some degree.
Pigmented Lesions
Skin Rejuvenation
Tattoo Removal
Skin Whitening

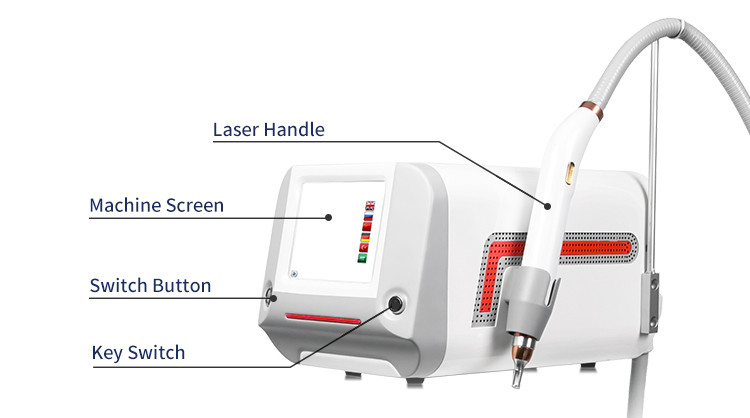

Machine Display
Technology
Laser Orientation on the Nd:YAG laser show you exactly where the
laser goes, which greatly improve the safety during procedure.
With three wavelengths (532/1064/1320nm), you can handle all colors
of pigmented lesions and tattoos.
Durable 500,000 Laser Shots.
There are presets value for many treatments. It’s very easy to use.

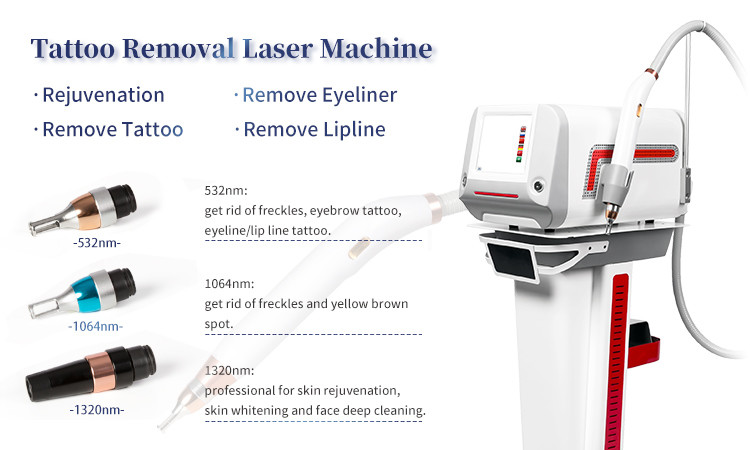

Application
1064nm head- Freckles and yellow brown spot removal.
532nm head- Freckles removal, eyebrow/eyeline/lip line tattoo
tattoo removal.
1320nm head- Skin rejuvenation, skin whitening, face deep cleaning.
Specification
| Screen | 8 inch LCD touch screen |
| Laser type | Q-Switched ND:YAG |
| Cooling system | Closed-off water circulation + air |
| Laser wavelength | 1064nm/532nm |
| Black moppet wavelength | 1320nm |
| Single pulse energy | ≤200mj 1064nm;≤100mj 532nm |
| Spot diameter | 5mm |
| Pulse width | 10-20ns |
| Working frequency | 1-6Hz |
| Power | 1000W |
